low price air source heat pump water heater
| Unit Price: | 1540~1966 USD |
|---|---|
| Min. Order: | 2 Piece/Pieces |
| Transportation: | Express,Ocean,Land,Air |
|---|
Product Description

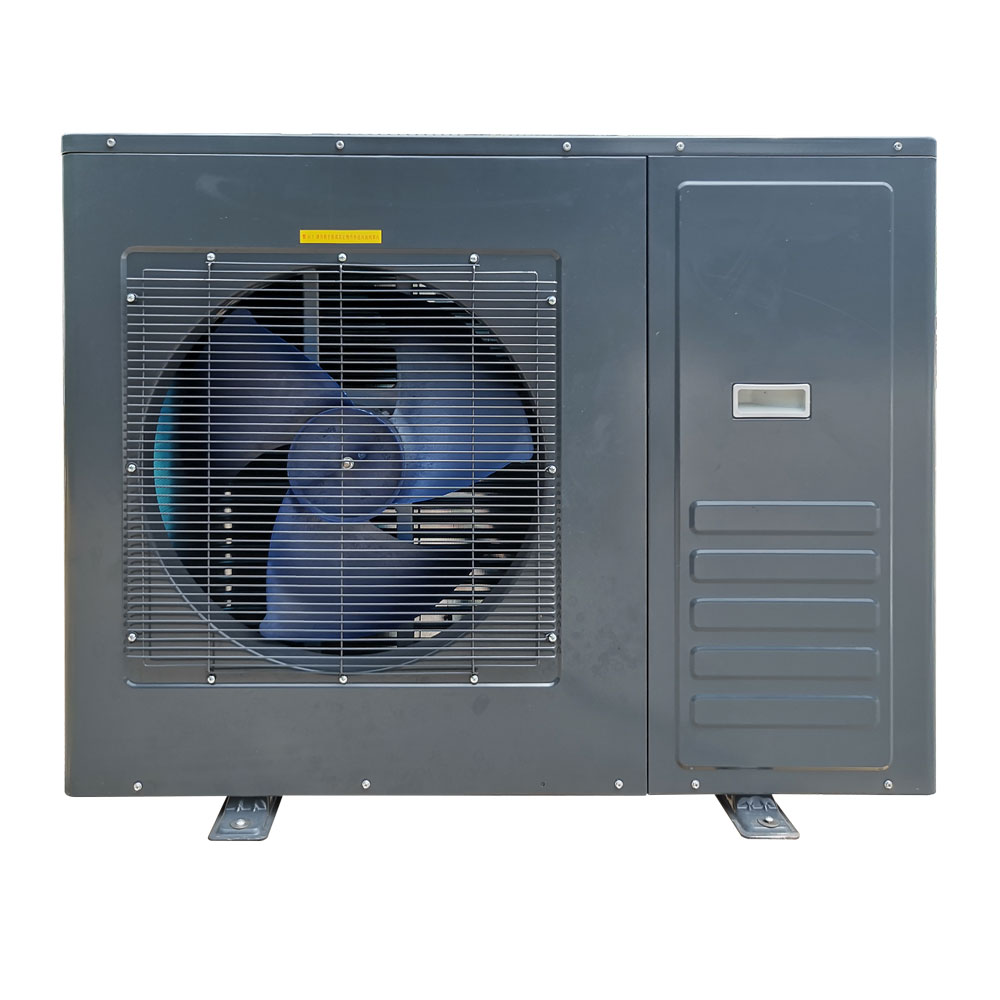

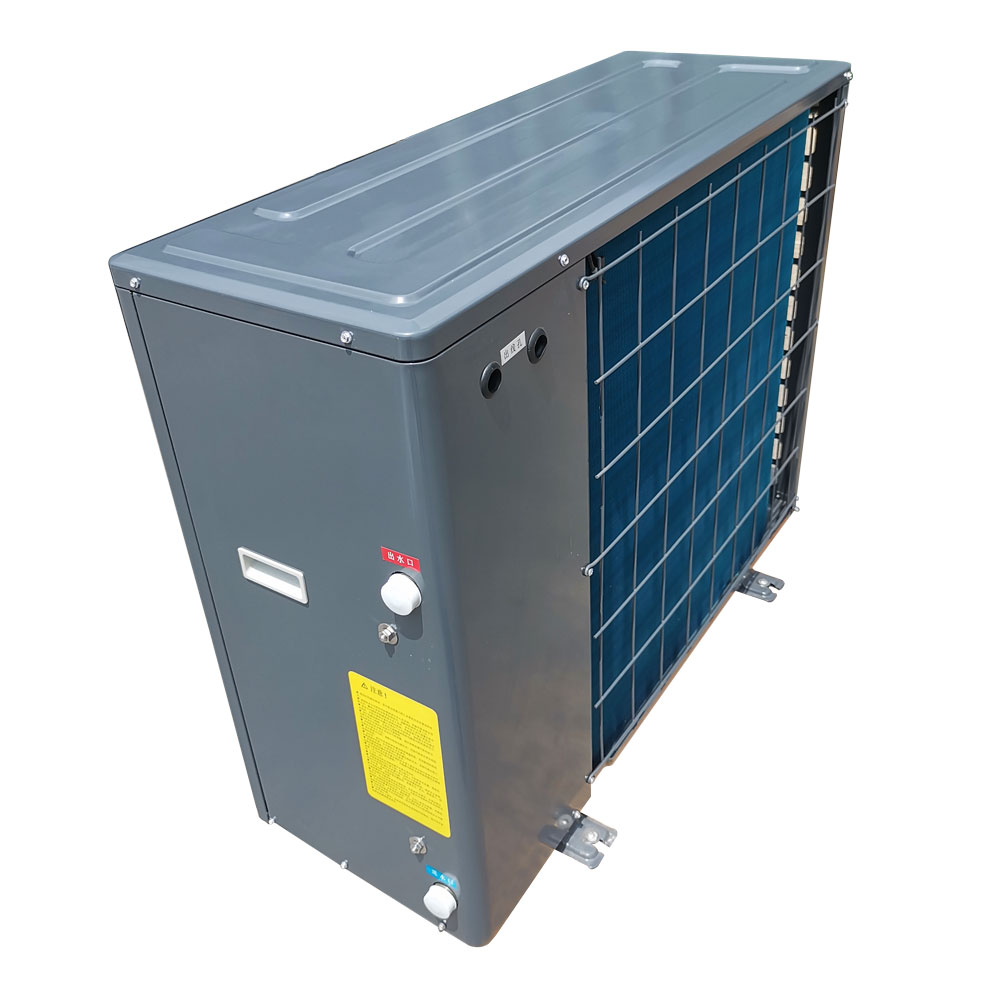

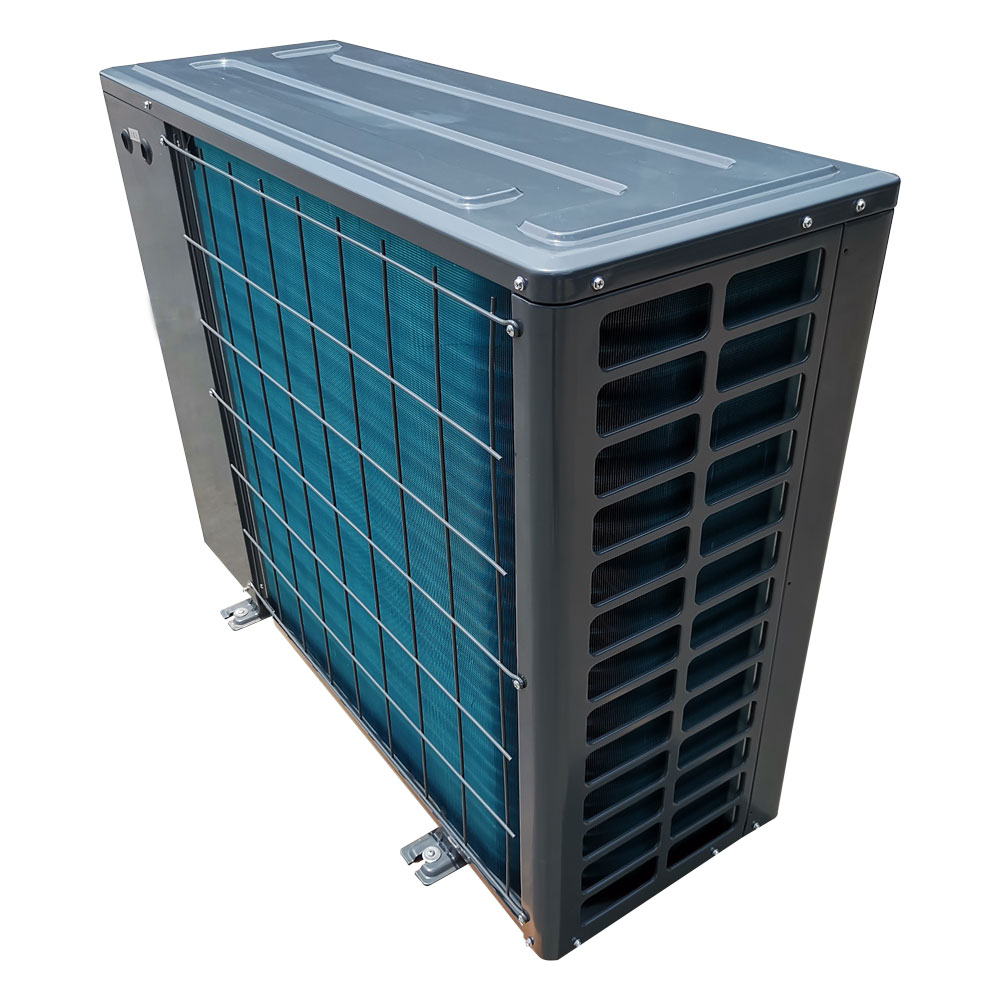

Ultra-Low Temperature Air Source Heat Pump for Home-Use

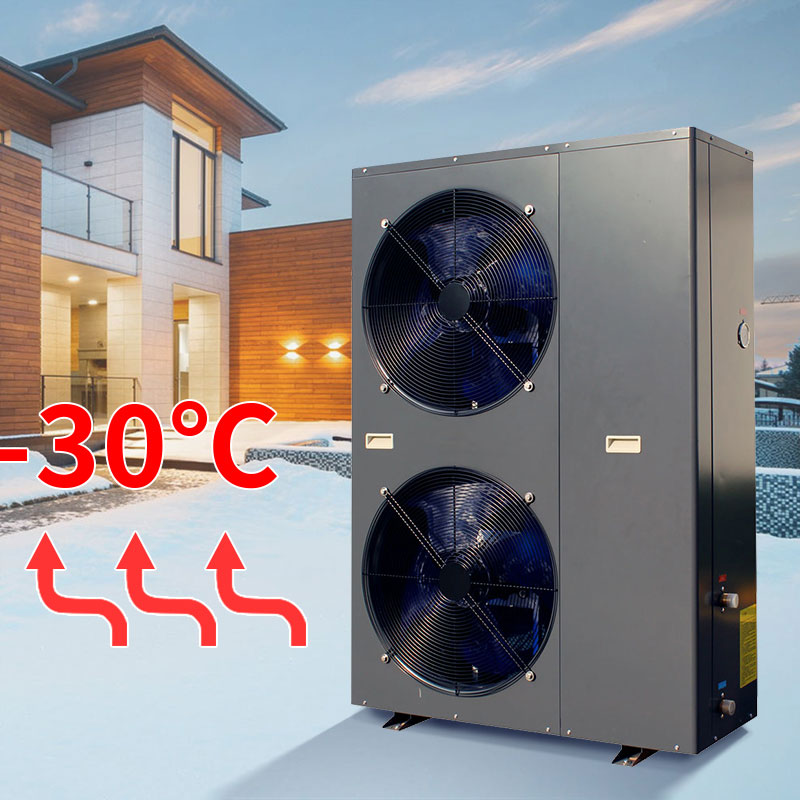

Ultra-low operating temperature: as low as -30 ℃.

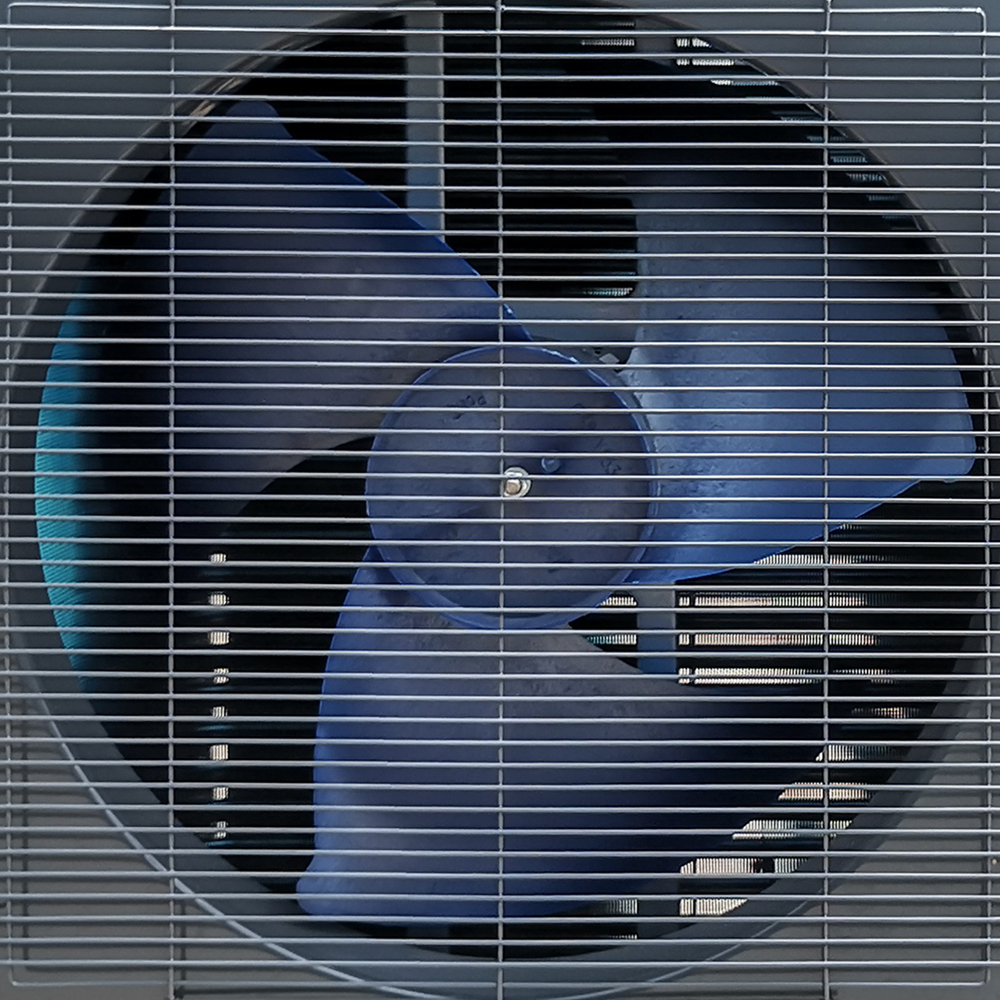

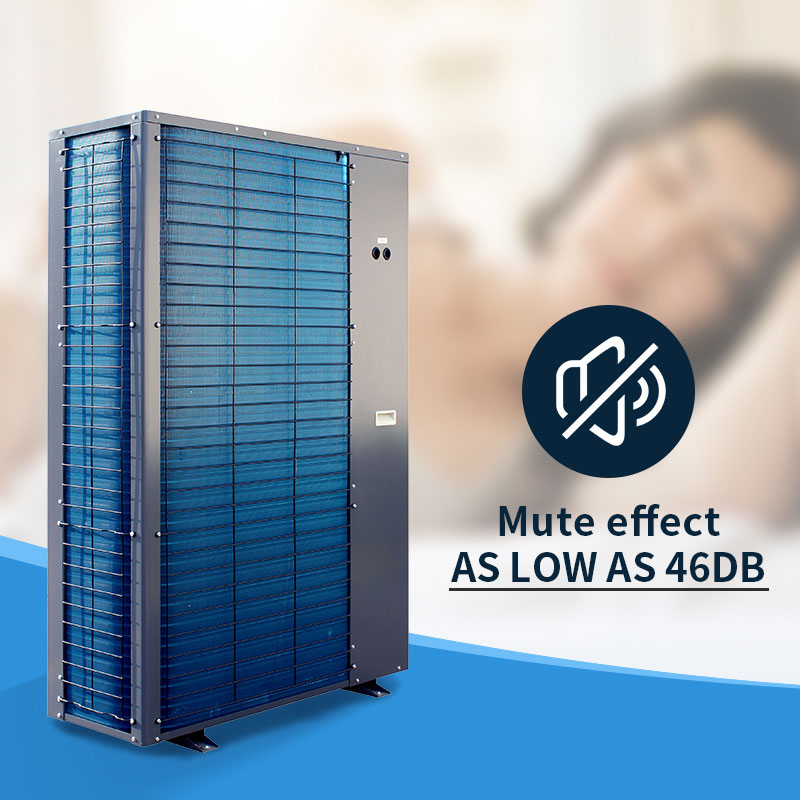

The machine uses double vibration reduction technology, equipped with brushless DC EVI fan
and compressor to reduce the noise.

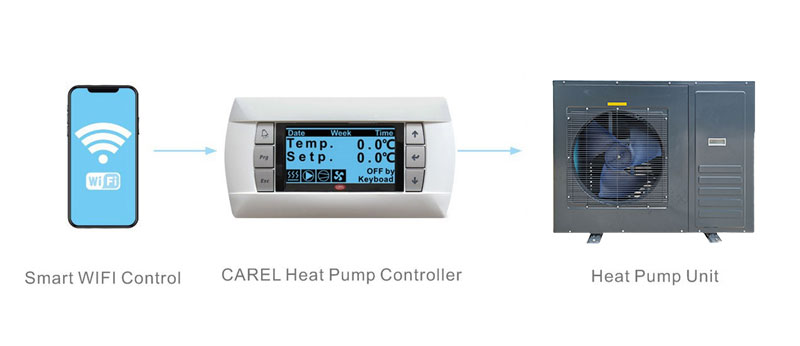

CAREL WIFI REMOTE CONTROLLING SYSTEM
Controlling Temperature by Your Fingertips
| Model No. | 020H-BPLNDW | 030H-BPLNDW | 050H-BPLNDW | 060H-BPLNDW | 080H-BPLNDW | 100H-BPLNDW | |||||
| Max Power（kW） | 3.32 | 3.32 | 5.54 | 6.64 | 8.29 | 11.07 | |||||
| Max Electricity（A） | 9.2 | 15.1 | 25.17 | 30.2 | 37.68 | 21.99 | |||||
| Water Temp.（℃） | 50 | ||||||||||
| Max Water Temp.（℃） | 55 | ||||||||||
| Power Supply（V/Hz） | 220V/50Hz | 3N 380V/50Hz | |||||||||
| Operating Ambient Temp.(℃) | -30℃-43℃ | ||||||||||
| Heat Exchanger | High Efficiency 316 Stainless Steel Plate Heat Exchanger | ||||||||||
| Refrigerant | R32 | ||||||||||

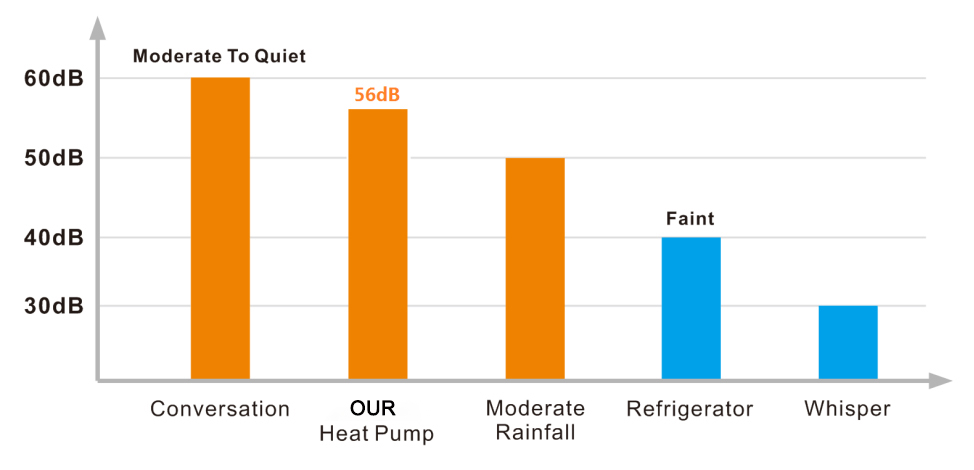

| Minimum Noise dB(A) | 49 | 52 | 52 | 52 | 58 | 65 | |||||
| Water Pressure of inlet and outlet unit （kPa） | 40 | ||||||||||
| Circulating Water Volume（5℃ temp. difference） （m³/h） | 1.1 | 1.55 | 2.63 | 3.07 | 4.09 | 5.12 | |||||
| IP Level | IPX4/I | | |||||||||
| Tube Size（mm） | DN25 | DN32 | |||||||||
| Weight（kg） | 100 | 106 | 140 | 155 | 180 | 230 | |||||
| Dimensions（mm） | 1050*370*14001160*420*860 | 1050*370*1400 | 1050*370*1400 | ||||||||
| Installation Dimensions（mm） | 800*430 | 800*430 | 800*380 | 800*380 | 800*380 | 800*430 | |||||
References Based on Different Ambient Temperature
Newfair Eco-Energy(Guangdong) Co.,Limited
- 1
- 2
- 3
- 4
- 5
Founded in 1998, we are one of the oldest manufacturer of: Swimming Pool Heat Pumps, House Heating Heat Pumps and Heat Pump Water Heaters in China. We focus on air source products continuously and obtained over 82 product patents and a series of industry certificates and awards, we also invested the industry`s first ultra-low temperature(as low as -35℃) testing laboratory in 2007, our 6 fully automated assembly lines are equipped with advanced temperature controllers from Siemens Germany. Our service team includes: 122 senior electrical HVAC engineers, 48 PLC/controlling APP programmers, which provides professionally refined, critically acclaimed service to OEM/ODM customers.
From 2008, we obtained 82 product patents and a series of industry certificates including: CE, TUV, KETI, China National Industrial Production License, ISO9001, ISO45001, CRAA, [Environmental Engineering Construction Qualification Level 3". We`re also an award winning company, including: `China Hot Spring SPA Annual Conference Influential Brand in 2019`, in 2018 we were awarded with: `China Refrigeration and Air Conditioning Equipment Industry Alliance Manufacturer`, `Premier Supplier of EverGrande(China's Biggest Real Estate Developer)' and `Liansheng Cup` Hot Spring Pool Annual Conference Industry Recommending Brand' Prior to this we were awarded with 'Heat Pump Industry Recommended Brand in 2017'.
